Quick Details

  • Type: Pressure Steam Sterilization Equipments
  • Brand Name: JIBIMED
  • Model Number: LS-50HV
  • Place of Origin: Jiangsu, China (Mainland)
  • Name: Class B pulse vacuum automatic sterilizer 50 liters
  • Working temperature: 134℃
  • Working pressure: 0.22Mpa
  • Max.working pressure: 0.23Mpa
  • Heat average: ≤±1℃
  • Timer: 0~99min
  • Adjustment of temperature: 0~134℃
  • Power: 3Kw AC 220V 50HZ
  • Certificates: ISO CE
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Export standard packing
Delivery Time Shipped in 20 days after payment

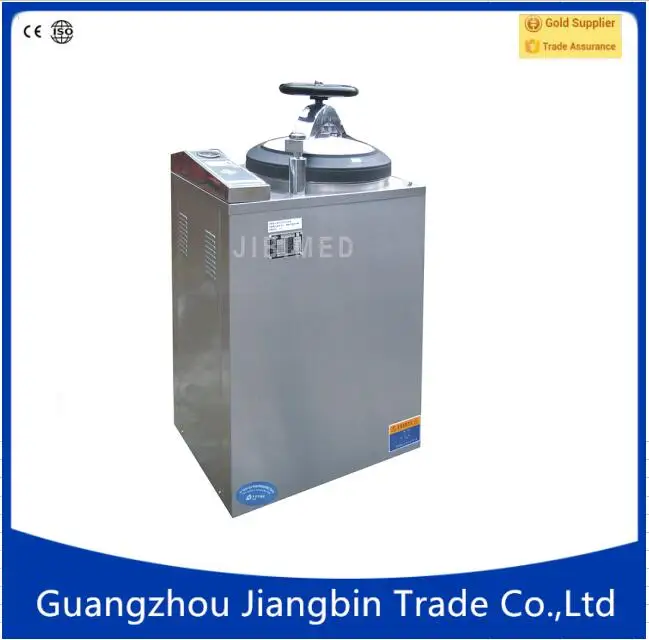

Class B pulse vacuum automatic sterilizer JIBIMED 50 liters autoclave with drying function

Product Application
The Vertical Cylindrical Pressure steam sterilizer is installed with an electrical heater,An automatically pressure-temperature controller,a safety valve,a releasing valve,a pressure-temperature indicator,an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater.It has the advantages of effective sterilization.Convenient operation,safe,less electro city consuming and cheap.It is ideal equipment for clinics,scientific research institutes and other organizations to sterilizer surgical instruments,fabrics,glasses,culture media etc.
Main Features
1)Microcomputer controlled,digital display of working statues,touch type key.
2)It dynamically shows the temperature,pressure time,vacuum rate and the cycle status
3)With fully automatically route of the water inlet,pulse vacuum,heating,sterilizing,draining,exhausting and vacuum drying.
4)3 times pulse vacuum,the vacuum rate would reach-0.081mpa after that ,which ensure the completely extracting of inner air from the dressing and A,B type hollowed appliance.
5)With 4 fixed programs for the appliance,medical dressing,rubber and fluid,the user also could set the program as they need randomly.
6)Equipped with the PY/TT testing connector,easy for runnnig the testing.
7)Multiple pulse vacuum drying after sterilizing,which ensure the good sterilizing result.
8)Equipped with 0.22 μm bacteria filter,it ensure the air which enter the inner vacuumed chamber is sterile ,avoid the second time contamination.
9)Hand wheel type for quick-open the door.Self-inflating type seal.
10)Adopted with immersed heating tube,with high heating efficiency.
11)Steam-water inner circulation system no steam discharge,and the environment for the sterilizing will be clean and dry.
12)Automatically shut off with beep reminding after sterilization
13)Fully high quality stainless,equipped with double stainless steel baskets.
Technical Data
Chamber Volume
Working Pressure0.22Mpa
Working Temperature134℃
Max.working pressure0.23Mpa
Heat average≤±1℃
Adjustment of temp0-134℃
 voltageAC220V 50Hz
Overall Dimension690*470*1140mm730*510*1270750*550*1305
Transport dimension760*550*1290mm820*600*1380840*640*1410



Packing & Delivery

1.Shipping by UPS/DHL/FEDEX/TNT ,takes 3~ 5 days to arrive.

2.Shipping by sea takes about one month to arrive .


3.As your request.
